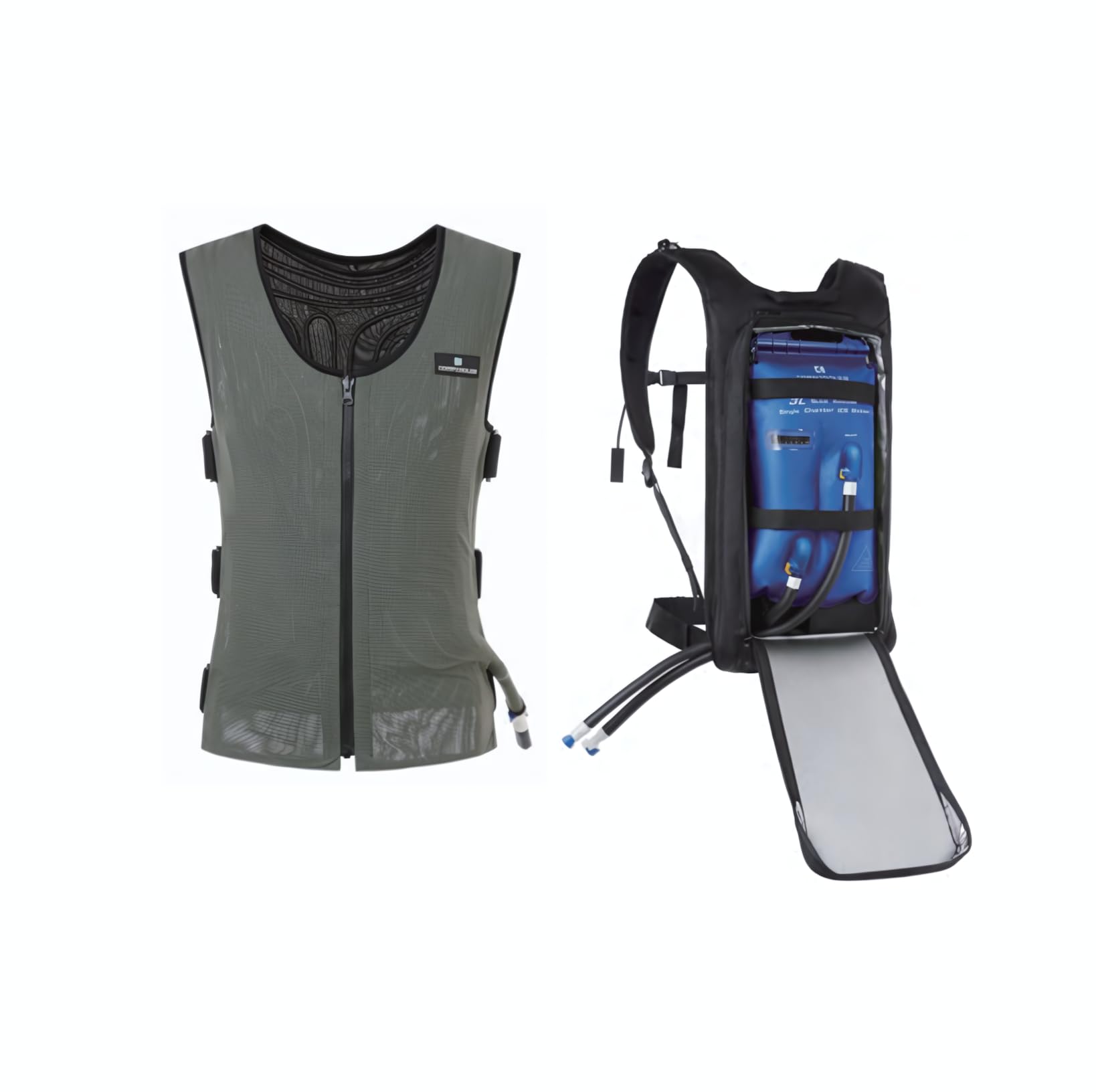

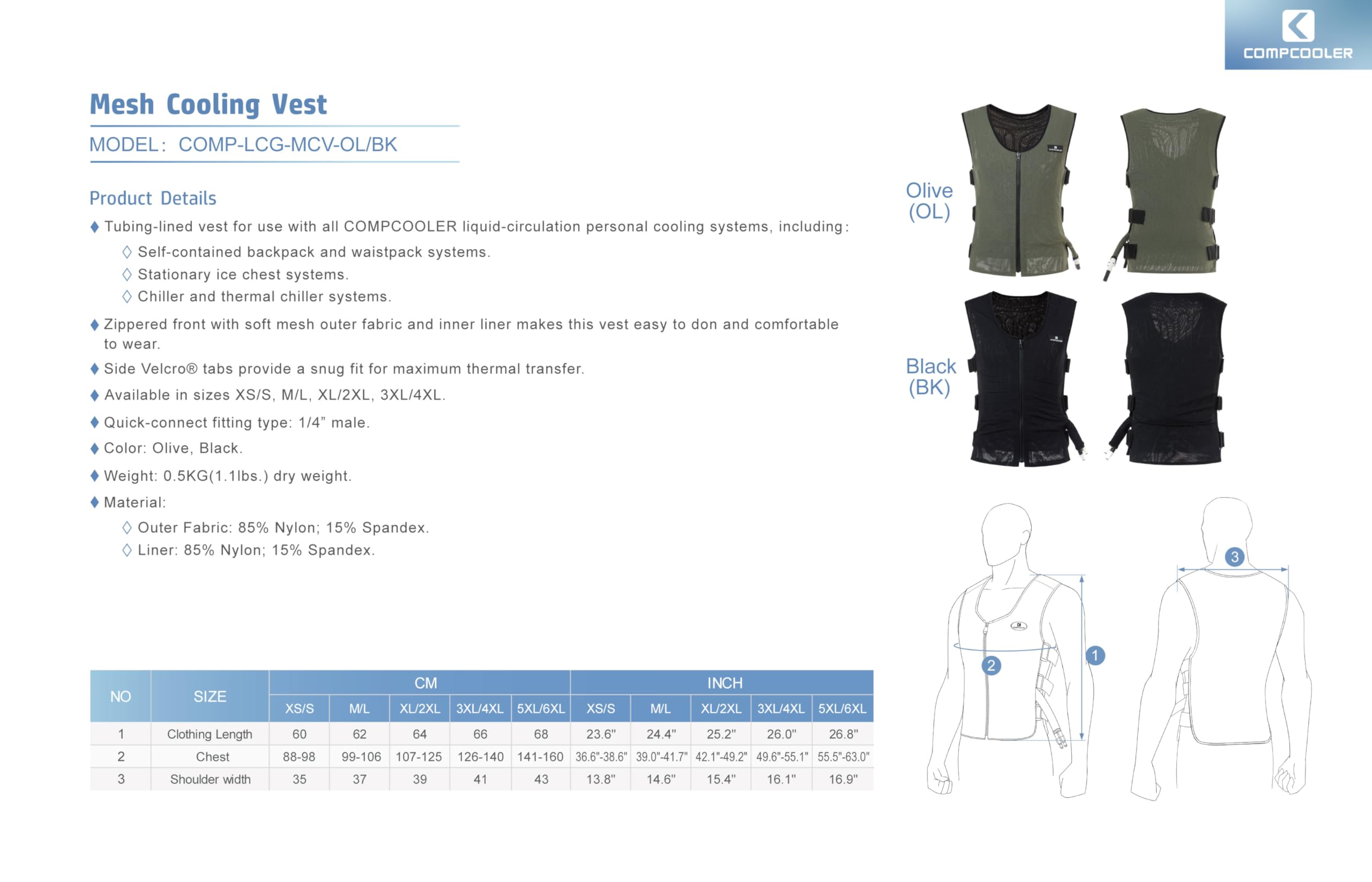

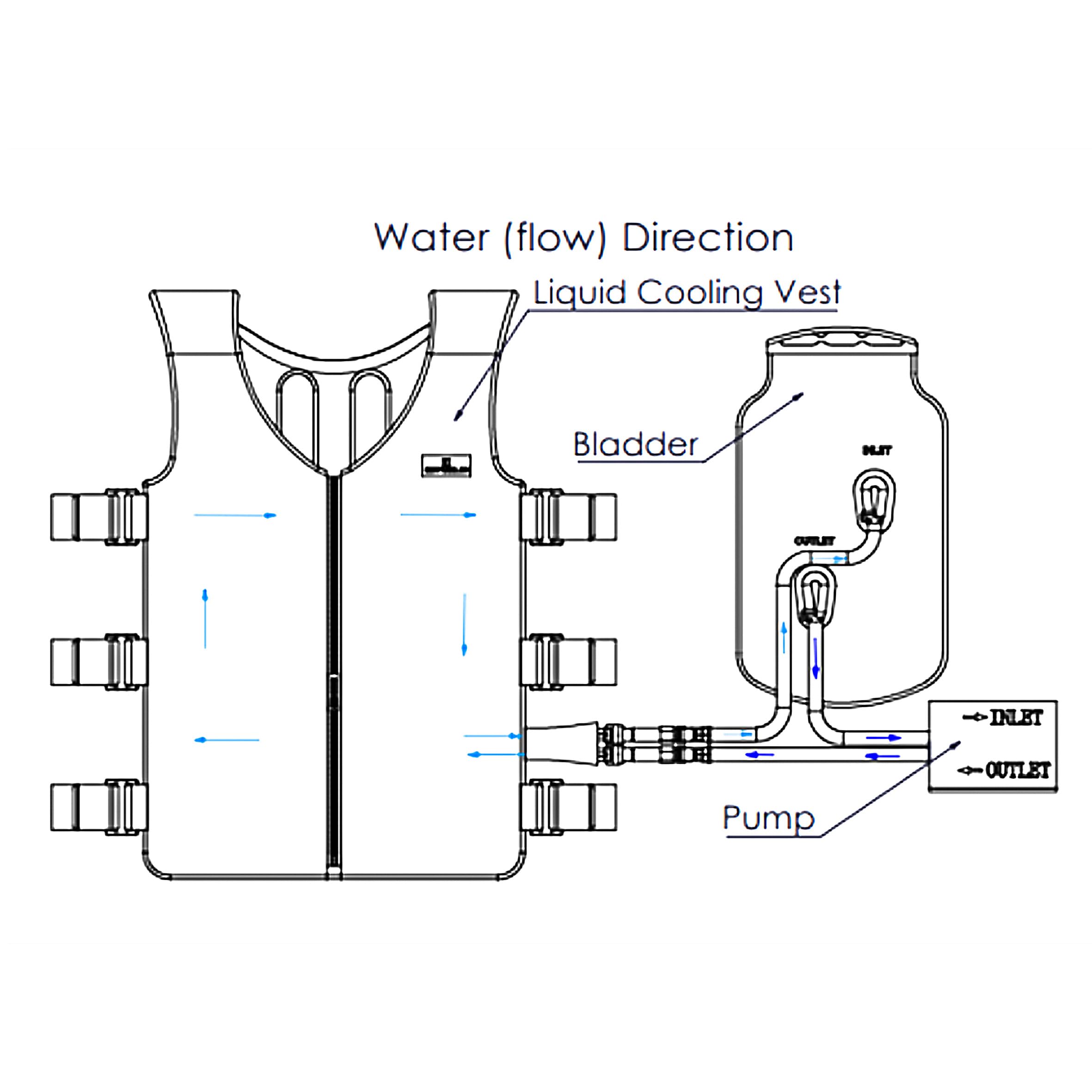

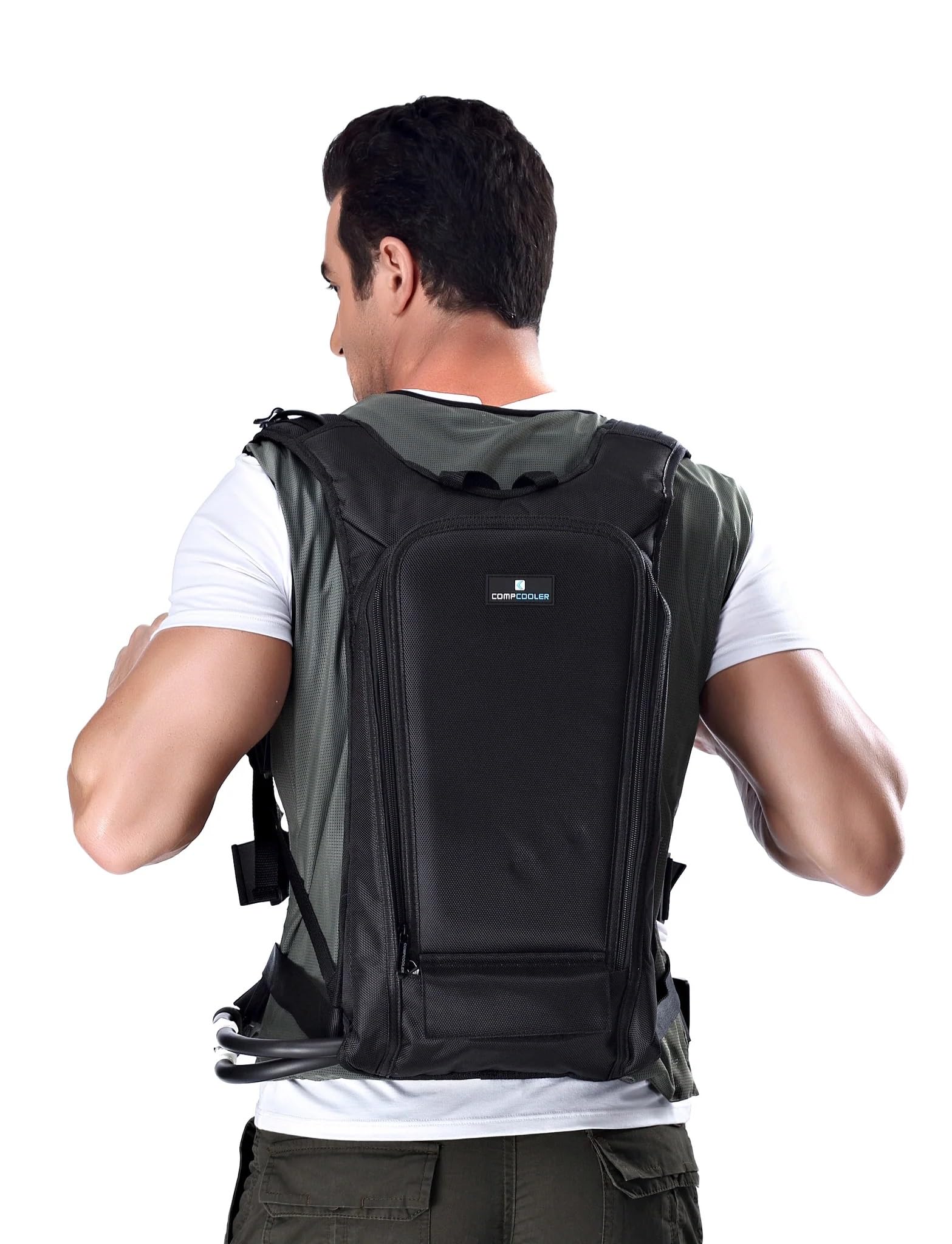

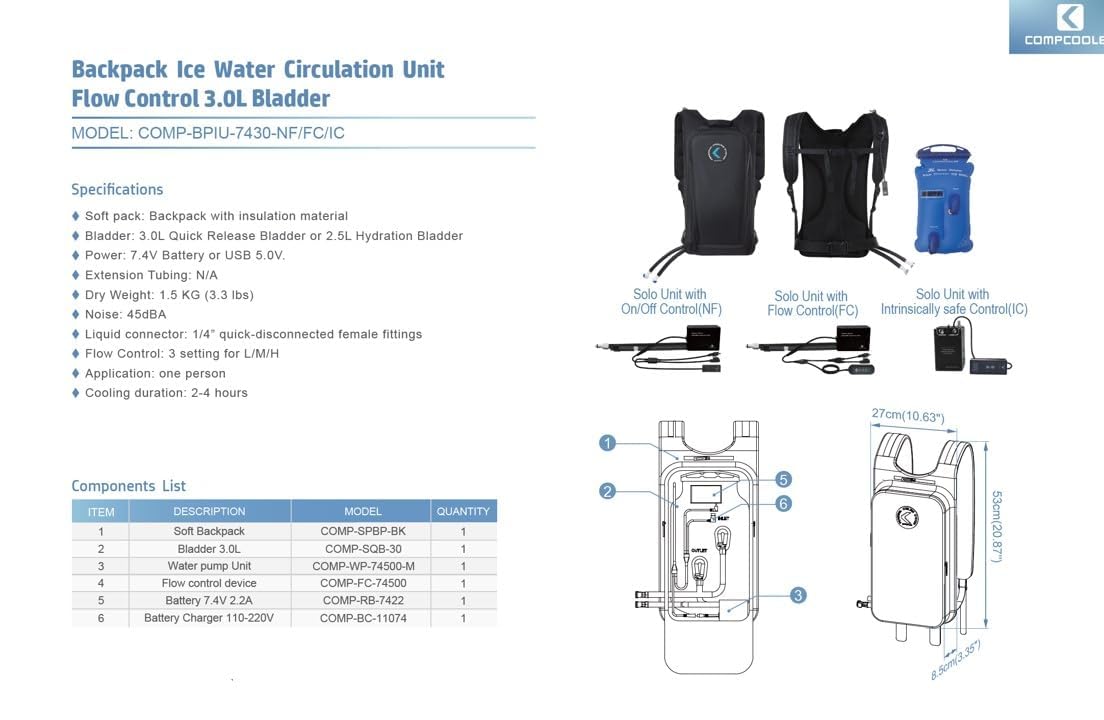

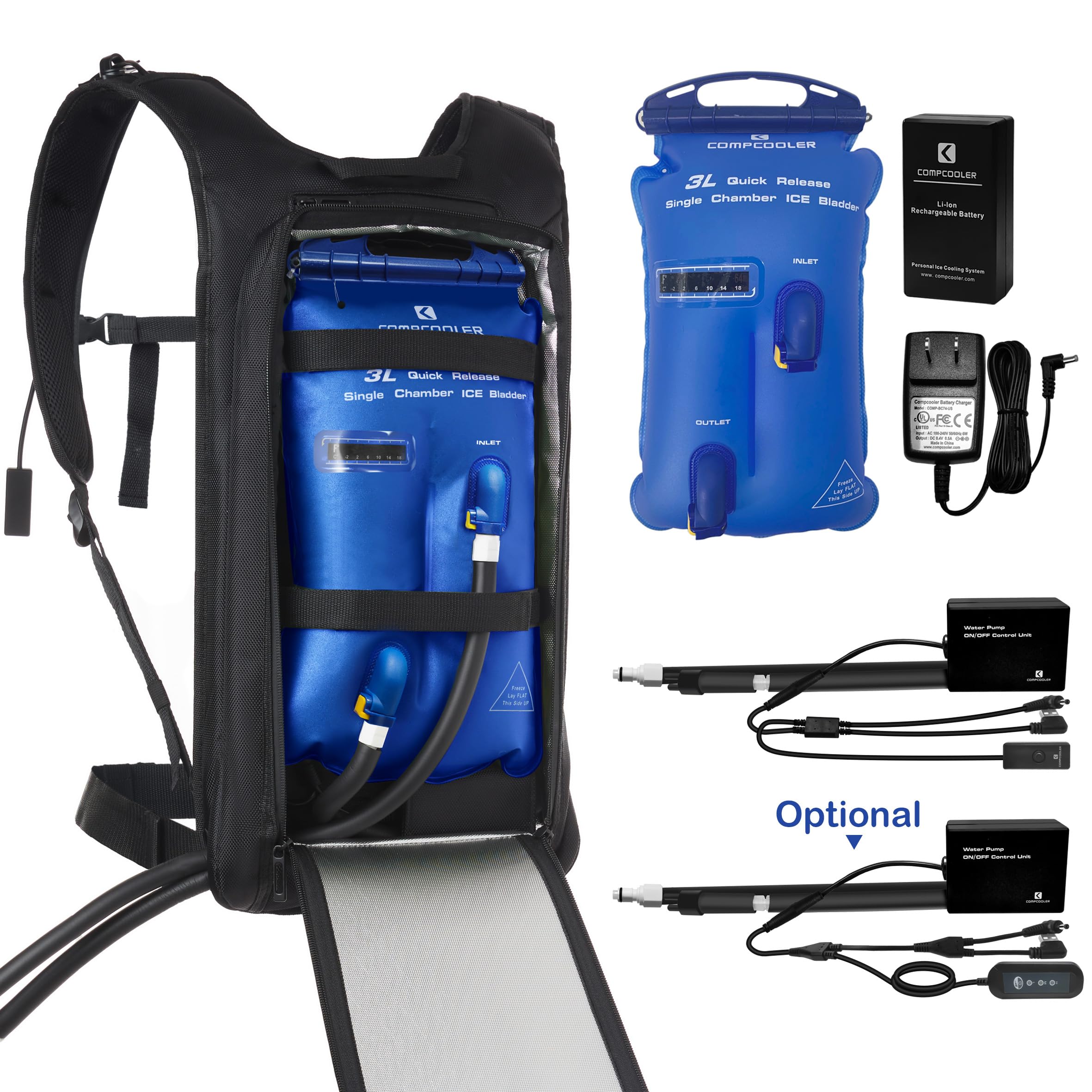

COMPCOOLER BACKPACK SELF-CONTAINED ICE WATER CIRCULATION COOLING SYSTEM PERSONAL LIQUID CIRCULATION COOLING SYSTEM System Description Model COMP-BPIC-7430V-NF Just because it’s hot outside doesn’t mean you can’t work or enjoy your activities. With the Compcooler Backpack Ice Cooling System you can work cooler, safer and stay focused for longer periods of time. The system combines a tubing-lined vest with a liquid cooling system housed in a backpack to form a self-contained and convenient thermal regulation device. Available in sizes XS/S, M/L, L/2XL, 3XL/4XL, the vest is a highly engineered breathable mesh garment that weighs a mere 0.5KG (1.1 lbs.), dry weight. It consists of a soft mesh outer fabric and inner liner which is easy to don and comfortable to wear against the body. The liquid cooling system is contained in a backpack that weighs 1.5KG (3.3 lbs.), dry weight. It includes a 3.0-liter removable water/ice bladder, miniature circulation pump, 7.4V 2200mAh rechargeable battery, and On/Off switch. When operating, it’s audible output is 45dBA. Cooling energy is provided by removing the bladder from the system, filling it with water and placing it in a freezer. Once frozen, the bladder is easily re-attached to the system, and with a charged battery pack, Users turn the switch ‘On’ and the pump circulates cold water in a continuous loop between the bladder and vest. Depending on ambient temperatures and workload, Users can expect a cooling duration anywhere from 2 to 4 hours with a fully frozen bladder or 1 to 3 hours using ice cubes in the bladder. The battery can last up to 10 hours. Additional bladders and battery packs can be purchased for prolonged cooling. Component List Backpack ICE Water Circulation Cooling System Backpack Self-Contained Circulation Unit (1) Mesh Liquid Cooling Vest (1) Mesh Liquid Cooling Vest Fabric Color: Olive Liner Color: Black Male quick fitting Size: XS/S, M/L, XL/2XL, 3XL/4XL Backpack Self-Contained Circulation Unit Insulation Backpack (1) Miniature water pump (1) Detachable Bladder (1) Rechargeable Battery (1) Battery charger US (1) COMPONENT LIST 3.0L Detachable Bladder Detachable Bladder Material: TPU Connector: Quick fittings Size: 3.0L Type: single chamber 7.4V 2.2A Battery Battery 7.4V 2200mAh Rechargeable Li-Ion Battery Charger: 110-220V US standard plug 7.4V Mini Water Pump Diaphragm Pump unit Control: On/Off mode Water flow: 500ml/min Voltage: 7.4V Current: 0.2A Pump Case: plastic Connector: CPC female quick fittings Drawings for backpack cooling system Drawings for Backpack ICE Water Cooling System Drawings for Backpack Cooling System
